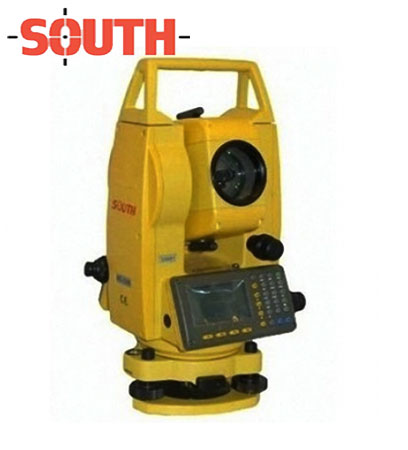

Total Station South NTS 312B (2 Second-Accuracy)
Rp 0
*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.
Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :
Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com
INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.
Out of stock
CompareDescription
INDOTELECOM Supplier Total Station South NTS 312B (2 Second-Accuracy) dari Produk South
Total Station South NTS 312B 2-Second Accuracy merupakan alat survey yang menggabungkan elektronik antara theodolite teknologi dengan teknologi EDM (pengukuran jarak elektronik). EDM merupakan jarak alat ukur elektronik yang menggunakan gelombang elektromagnetik dari cahaya inframerah sebagai pengukuran sinyal gelombang pembawa dan dibantu oleh reflektor berupa prisma sebagai target (alat memantulkan cahaya inframerah untuk kembali ke EDM).
Total Station South NTS 312B 2-Second Accuracy menawarkan banyak keuntungan untuk hampir semua jenis survei. seperti: topografi, Hidrografi, kadaster, proyek dan survei konstruksi.
Features Total Station South NTS 312B 2-Second Accuracy
- The domestic sales of the largestAnd longest single Prism
- Single Prism: 5000 m ranging accuracy: 1 +1 ppm
- Simple and applicable Wumart inexpensive
- Absolute encoder angle measurement to improve the stability of the instrument!
Specifications South NTS 312B
| Distance Measurement | ||
| Max. range | Single prism | 2KM |
| (good condition) | ||
| Display | Max.:999999.999 Min.:1MM | |
| Accuracy | Prism 2+2PPM | |
| Measure time | measure: 1s; tracking: 0.8s | |
| Atmospheric correction | input parameter and auto correction | |
| Reflector constant correction | input parameter and auto correction | |
| Angle Measurement | ||
| Measure method | absolute encoding | |
| Diameter of disk | 79MM | |
| Minimum reading | 1″/5″ | |
| Accuracy | 2″ | |
| Detection method | horizontal: dual vertical: dual | |
| Telescope | ||
| Image | erect | |
| Telescope length | 154MM | |
| Effective aperture | 45mm (distance meter: 50mm) | |
| Magnification | 30* | |
| Resolving power | 3” | |
| Field of view | 1°30’ | |
| Minimum focus | 1.0m | |
| COMPENSATOR | ||
| System | single axis liquid | |
| Compensating range | +/-3′ | |
| Resolving power | 1″ | |
| Vial | ||
| Plate vial | 30″/2MM | |
| Circular vial | 8’/2MM | |
| OPTICAL PLUMMET | ||
| Image | erect | |
| Magnification | 3x | |
| Focusing range | 0.5 ~ ∞ | |
| Field of view | 5° | |
| DISPLAY and Storage | ||
| Type | Dual-side | |
| Storage | 10000 points | |
| Battery | ||
| Power | Ni-H rechargeable | |
| Voltage | DC 6V | |
| Operating time | 8hours | |
| Size and weight | ||
| Size | 200*180*350MM | |
| Weight | 5.8kg | |
South NTS 312B Electronic Total Station Scope of delivery
- South NTS-312B Total Station
- 2 Nos. Battery
- 1 No. Battery Charger
- Data Downloading Cable
- Tool Kit
- Belt for Case
- Dryer
- Carrying Case
- Operation Manual
- Software CD
- Rain Cover
- Heavy Duty Wooden / Aluminium Tripod
- Prism with Holder & Target Plate
- Telescopic Prism Pole
