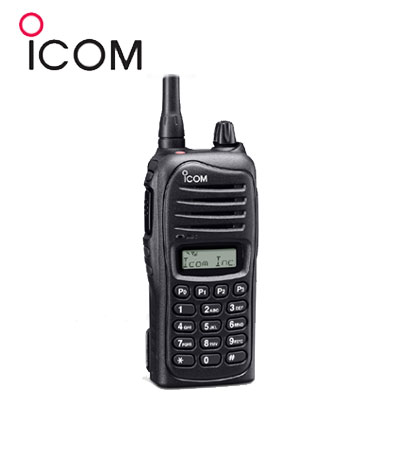

Handy Talky Icom IC-F4033T

Rp 2.750.000

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare

Share this product

Description

INDOTELECOM Supplier Handy Talky Icom IC-F4033T dari Produk Icom

Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in Japan, the United States, the United Kingdom, Germany, France, Spain, Russia, Australia, New Zealand and/or other countries. All trademarks are the properties of their respective holders.

Specifications VHF and UHF Transceivers IC-F3033T/S IC-F4033T/S

General

  • Frequency coverage 136–174 MHz
  • 400–470 MHz
  • 450–520 MHz
  • Number of channels 128 channels/8 zones
  • Type of emission 16K0F3E/11K0F3E
  • Channel spacing 25/12.5 kHz
  • Power supply requirement 7.2 V DC nominal
  • Current drain (approximate)
  • Tx High
  • Rx Max. audio/Standby
  • 1.5 A (at 5 W)
  • 250 mA/75 mA
  • 1.6 A (at 4 W)
  • 300 mA/75 mA
  • Antenna impedance 50 Ω
  • Operating temperature range –30 °C to +60 °C (Radio specifications)
  • Dimensions (W × H × D)
  • (Projections not included)
  • 53 × 120 × 37 mm (With BP-232WP)
  • Weight (approximate) 310 g (With BP-232WP)

Transmitter

  • Output power (at 7.2 V DC) 5 W, 2 W, 1 W (Hi, L2, L1) 4 W, 2 W, 1 W (Hi, L2, L1)
  • Max. frequency deviation ±5.0/±2.5 kHz (Wide/Narrow)
  • Frequency stability ±2.5 ppm
  • Spurious emissions 80 dB typ. 70 dB min.
  • FM Hum and Noise 46/40 dB typ. (Wide/Narrow)
  • Audio harmonic distortion 3% typ. (AF 1 kHz 40% deviation)
  • Ext. microphone connector 3-conductor 2.5 (d) mm (1⁄10ʺ)/2.2 kΩ

Reciever

  • Sensitivity (at 12 dB SINAD) 0.25 μV typ.
  • Adjacent channel selectivity 75/65 dB typ. (Wide/Narrow)
  • Spurious response rejection 70 dB min.
  • Intermodulation rejection 75 dB typ. 74 dB typ.
  • Hum and noise 55/50 dB typ. (W/N) 45/40 dB typ. (W/N)
  • Audio output power 500 mW typ. (at 5% distortion, 8 Ω load)
  • Ext. speaker connector 2-conductor 3.5 (d) mm (1⁄8ʺ)/8 Ω
  • Measurements made in accordance with EIA/TIA-603.
  • All stated specifications are subject to change without notice or obligation.
  • Applicable U.S. Military Specifications & IP Rating
  • Standard MIL 810G
  • Method Procedure
  • Low Pressure 500.5 I, II
  • High Temperature 501.5 I, II
  • Low Temperature 502.5 I, II
  • Temperature Shock 503.5 I-C
  • Solar Radiation 505.5 I
  • Rain Blowing/Drip 506.5 I, III
  • Humidity 507.5 II
  • Salt Fog 509.5 –
  • Dust Blowing 510.5 I
  • Immersion 512.5 I
  • Vibration 514.6 I
  • Shock 516.6 I, IV
  • Also meets equivalent MIL-STD-810-C, -D, -E and -F.
  • Ingress Protection Standard (IC-F3033T/S, F4033T/S, BP-232WP & HM-168LWP)
  • Dust & Water IP67 (Dust-tight and waterproof protection)

Jual Handy Talky Icom IC-F4033T dan cari produk terbaik lainnya dari kategori Handy Talky dari Merk Icom Gratis biaya pengiriman untuk wilayah Jakarta-Depok dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Indotelecom.id, belanja online alat ukur dan alat survey mudah dan aman.

INDOTELECOM.id menyediakan berbagai produk dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, dan Bali.
