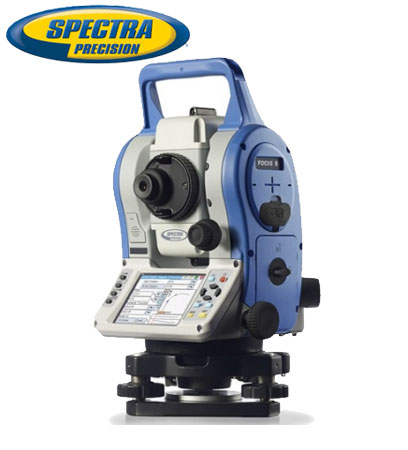

Total Station Spectra Precision Focus 8-2″Accuracy

Rp 0

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Out of stock

Compare

Share this product

Description

INDOTELECOM Supplier Total Station Spectra Precision Focus 8-2″Accuracy dari Produk Spectra

Total Station Spectra FOCUS 8 Reflectorless dengan akurasi 2 detik menggabungkan optik kejelasan dan perangkat lunak lapangan Survey Pro untuk merekam pengukuran jarak dan sudut yang tepat. Alat survei ini dilengkapi fitur Bluetooth untuk menghubungkan ke kolektor data dan layar touchscreen warna, meningkatkan alur kerja data melalui akses menu dan mode perangkat lunak. Ringan dan tahan lama, FOCUS 8 sangat portabel dan bisa beroperasi dalam kondisi cuaca yang keras.

Features Spectra Precision Focus 8 2-Second Accuracy

  • 2-second accuracy
  • 128 MB internal memory
  • 1,640 foot range
  • Bluetooth
  • Optical plummet
  • Coaxial red laser pointer
  • Reflectorless
  • Dual-axis compensation
  • Onboard Survey Pro software
  • Built-in Windows CE operating system
  • USB high-speed data transfer port
  • Up to 28 hours operating time with hot swappable batteries
  • Water resistant and dustproof to IP-66
  • Dual color touchscreen LCD display
  • Easy-to-use keypad
  • Compact, rugged and lightweight

Specifications Spectra Precision Focus 8 2 Second Accuracy

General
Weight 8.6 lbs (3.9 kg)
Dimensions 5.8 in x 5.7 in x 12.0 in (14.7 cm x 14.4 cm x 30.4)
Warranty 2-year
Protection Class IP66 (dustproof and protection against strong water jets)
Internal Memory 128 MB
Software Spectra Survey Pro
Tribrach Detachable
Guide Light Red LED

Angle Measurement
Measuring Method/Reading System Absolute encoder
Minimum Reading 1-second
Accuracy 2-second
Diameter of Circle 2.4 in (6 cm)

Distance Measurement
Unit of Measure (distance display) m/ft
EDM Accuracy (Precision) ±(2mm + 2ppm x D) for prism; ±(3mm + 2ppm x D) for no prism
Minimum Reading 500 m (1,640 ft)

Tilt Sensor/Compensator
Range ±3.5
Type Dual-axis
Method Liquid-electric detection

Battery/Power
Power Source Two rechargeable Li-Ion batteries
Battery Life 28 hours
Battery Life Alert yes
Voltage 3.8 V DC

Optical Plummet
Image Erect
Magnification
Field of View 5 degrees
Focus Range 0.5 m (1.6 ft) to infinity

Level
Circular Bubble Vial 10 minutes per division/(2 mm)
Electronic Level Displayed on the LCD

Telescope
Length of Tube 125 mm (4.9 in)
Image Erect
Diameter of Objective Lens (Aperture) 45 mm EDM (1.8 in)
Magnification 30x
Field of View 1 degree 20 arcmin
Resolving Power 3 arcsec
Minimum Focus Distance 1.5 m (4.9 ft)
Reflectorless yes

Display and Keypad
Type QVGA ,16 bit color TFT LCD
Sides Dual
Keys Full numeric keyboard
Touchscreen yes
Backlight yes
Pixels Face 1: 320 x 240 pixels; Face 2: 128 x 64 pixels

Temperature
Operating -4°F~122°F (-20°C~50°C)
Storage -13°F~140°F (-25°C~60°C)

Applications
Surveying and Construction yes
Mapping and GIS (geographic information systems) yes
Utilities yes
Environment Studies yes
Geomarking yes
Archaeology yes
Accident Reconstruction yes

Measurement Range (under fair weather conditions)
Single Prism 3,000 m (9,843 ft)
No Prism 500 m (1,640 ft)
Reflector Sheet 270 m (886 ft)

Functions
Coordinate Measurement Point yes
Angle and Distance Stake Out yes
Stake Out Line yes
Offsets yes
Missing Line yes
Remote Elevation yes
Resection yes
Area Calculation yes

Laser Plummet
Class 2
Wavelength 635 nm

Interface
Bluetooth Class 2
USB Type A and mini B
Pin Port RS-232C
Operating System

Windows CE
