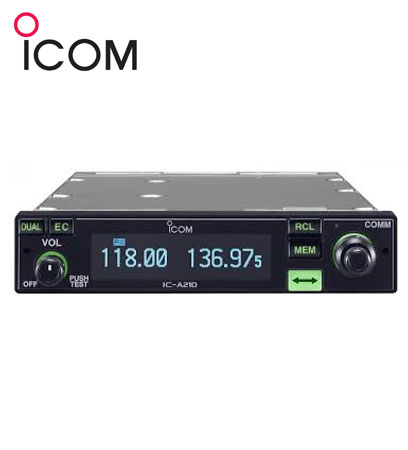

Radio Rig Icom IC-A210 (Air Band)

Rp 0

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email :

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Out of stock

Categories: , Tag:

Share this product


INDOTELECOM Supplier Radio Rig Icom IC-A210 (Air Band) dari Produk Icom

Innovative airband that’s easier to install and see in more places

Large, bright OLED display

The IC-A210 has an organic light emitting diode (OLED) display. The display offers many advantages in brightness, vividness, contrast, viewing angle and response time compared to a conventional display. In addition, the auto dimmer function adjusts the display for optimum brightness at day or night.

Easy channel selection

It’s fast and easy to select any of the memory channels in the IC-A210. The “flip-flop” arrow button switches between main and stand-by channels. The dualwatch function allows you to monitor two channels simultaneously. In addition, the auto stack memory stores the last 10 channels used and allows you to recall those channels easily.

GPS memory function

When connected to an external GPS receiver* equipped with an airport frequency database, the frequency data such as nearby airports can be transferred and made available in the IC-A210.

* Ask your dealer for available GPS receiver details.

12V/24V DC power source

The built-in DC-DC converter accepts a 12/24V DC power source. The IC-A210 is easily installed in most airplanes or vehicles.

Intercom functions

The IC-A210 has a built-in voice activated intercom function allowing the pilot to talk with the co-pilot via the headset. The IC-A210 has adjustable audio level and squelch control functions.

Easy installation

The IC-A210 neatly fits inside the common mounting brackets used on most airplanes including Icom’s IC-A200. Two types of rear-panel adapters are included, allowing for streamlined plug-in connectivity.

* Ask your dealer for compatible panel mount radio details.

Other features

  • 8.33kHz/25kHz channel spacing (Depending on version)
  • NOAA weather channel receive (USA version only)
  • One touch access to 121.5MHz emergency frequency
  • Side tone function
  • ANL (Automatic noise limiter) function
  • Remote control capability
  • Time-out-timer
  • PC programmable


Frequency range Tx/Rx: 8.33kHz spacing
118.000–136.992MHz25kHz spacing
Rx WX Channels: 161.650–163.275MHz (USA only)
Number of memory channels 240ch (Max.)
Channel spacing 8.33kHz / 25kHz
Power supply requirements 13.8/27.5V DC
(automatic selection)
Current drain Tx 5.0A Max.
Rx Stand-by 500mA
Max. audio 4.0A
Dimensions (W×H×D)
(Projections are not included)
160×34×271 mm
6.3×1.34×10.67 in
Weight 1.0kg; 2.2lb
Operating temperature range –20°C to +55°C
Frequency stability ±5ppm


RF output power 8.0W typ. (Carrier power)
Microphone impedance 600Ω


Sensitivity 2μV (6dB S/N)
Selectivity 6dB: ±3kHz / ±2.778kHz
60dB: ±22kHz / ±7.37kHz
(25kHz / 8.33kHz spacing)
Spurious response rejection 74dBμ
Audio output power
(at 10% distortion)
5W typ. with a 4Ω load
60mW with a 500Ω load

Applicable U.S. Military Specifications

The IC-A210 has been tested to and passed the following MIL-STD requirements and strict environmental standards.

Standard MIL-810 F
Method, Proc.
Low Pressure Storage 500.4 I
Low Pressure Operation 500.4 II
High Temperature Storage 501.4 I
High Temperature Operation 501.4 II
Low Temperature Storage 502.4 I
Low Temperature Operation 502.4 II
Temperature Shock 503.4 I
Solar Radiation 505.4 I
Humidity 507.4
Vibration 514.5 I
Shock Functional 516.5 I

Also meets equivalent MIL-STD-810-C, -D and -E.
