Konektor-Andrew-L6TDM-PS-7-16-DIN-Male

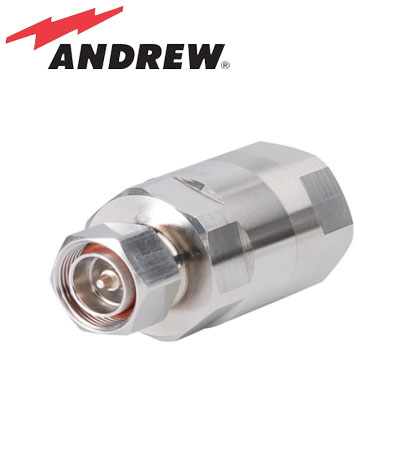

Konektor Andrew L6TDM-PS 7-16 Din Male

Rp 425.000

INDOTELECOM supplier Konektor Andrew L6TDM-PS 7-16 Din Male
* Harga sewaktu-waktu dapat berubah mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21 – 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Konektor Andrew, Kabel Andrew Heliax, Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare
Category: Tag:

Share this product

Description

Konektor Andrew L6TDM-PS 7-16 Din Male Positif STOP For 1-1/4 Inch merupakan konektor produksi Andrew Commscope. Konektor Andrew ini banyak digunakan utk Radio Komunikasi. Konektor Andrew L6TDM-PS 7-16 Din Male mempunyai kualitas yang sangat baik & bagus.

Connector L6TDM-PS 7-16 DIN Male Positive Stop™ for 1-1/4 in LDF6-50 cable.

Product Classification:

  • Brand: HELIAX®   |   Positive Stop™
  • Product Type: Wireless and radiating connector

General Specifications:

  • Interface: 7-16 DIN Male
  • Body Style: Straight
  • Brand: HELIAX®   |   Positive Stop™
  • Mounting Angle: Straight

Electrical Specifications:

  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 3300 MHz
  • Cable Impedance: 50 ohm
  • 3rd Order IMD, typical: -120 dBm @ 910 MHz
  • 3rd Order IMD Test Method: Two +43 dBm carriers
  • RF Operating Voltage, maximum (vrms): 1415.00 V
  • dc Test Voltage: 4000 V
  • Outer Contact Resistance, maximum: 1.50 mOhm
  • Inner Contact Resistance, maximum: 0.80 mOhm
  • Insulation Resistance, minimum: 5000 MOhm
  • Average Power: 3.0 kW @ 900 MHz
  • Peak Power, maximum: 40.00 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -130 dB

Mechanical Specifications:

  • Outer Contact Attachment Method: Ring-flare
  • Inner Contact Attachment Method: Captivated
  • Outer Contact Plating: Trimetal
  • Inner Contact Plating: Silver
  • Attachment Durability: 25 cycles
  • Interface Durability: 500 cycles
  • Interface Durability Method: IEC 61169-16:9.5
  • Connector Retention Tensile Force: 1779 N   |   400 lbf
  • Connector Retention Torque: 10.85 N-m   |   96.00 in lb
  • Insertion Force: 200.17 N   |   45.00 lbf
  • Insertion Force Method: IEC 61169-1:15.2.4
  • Pressurizable: No
  • Coupling Nut Proof Torque: 24.86 N-m   |   220.00 in lb
  • Coupling Nut Retention Force: 1000.85 N   |   225.00 lbf
  • Coupling Nut Retention Force Method: MIL-C-39012C-3.25, 4.6.22

Dimensions:

  • Nominal Size: 1-1/4 in
  • Diameter: 51.21 mm   |   2.02 in
  • Length: 92.00 mm   |   3.62 in
  • Weight: 592.00 g   |   1.31 lb

Environmental Specifications:

  • Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
  • Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
  • Immersion Depth: 1 m
  • Immersion Test Mating: Unmated
  • Immersion Test Method: IEC 60529:2001, IP68
  • Water Jetting Test Mating: Unmated
  • Water Jetting Test Method: IEC 60529:2001, IP66
  • Moisture Resistance TestMethod: MIL-STD-202F, Method 106F
  • Mechanical Shock Test Method: MIL-STD-202F, Method 213B, Test Condition C
  • Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
  • Vibration Test Method: MIL-STD-202F, Method 204D, Test Condition B
  • Corrosion Test Method: MIL-STD-1344A, Method 1001.1, Test Condition A

Standard Conditions:

  • Attenuation, Ambient Temperature: 20 °C   |   68 °F
  • Average Power, Ambient Temperature: 40 °C   |   104 °F

Jual Konektor Andrew L6TDM-PS 7-16 Din Male dan cari produk terbaik lainnya dari kategori Cable and Connector dari Merk Andrew Gratis biaya pengiriman untuk wilayah Jakarta-Depok dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Indotelecom.id, belanja online alat ukur dan alat survey mudah dan aman.

INDOTELECOM.id menyediakan berbagai produk dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, dan Bali.
