Andrew-L4TDF-PSA-7-16-DIN-F

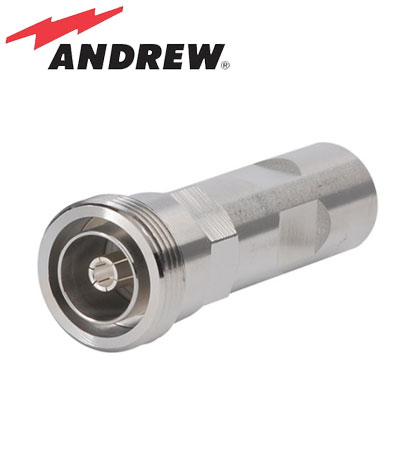

Konektor Andrew L4TDF-PSA 7-16 Din Female

Rp 385.000

INDOTELECOM supplier Konektor Andrew L4TDF-PSA 7-16 Din Female
* Harga sewaktu-waktu dapat berubah mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21 – 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Konektor Andrew, Kabel Andrew Heliax, Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare
Category: Tag:

Share this product

Description

Konektor Andrew L4TDF-PSA 7-16 Din Female merupakan konektor produksi Andrew Commscope. Konektor ini banyak digunakan utk Radio Komunikasi. Khususnya untuk Perangkat Repeater (Radio Pancar Ulang).

Berikut Untuk Spesifikasi Konektor Andrew L4TDF-PSA 7-16 Din Female :

L4TDF-PSA 7-16 DIN Female Positive Stop™ for 1/2 in AL4RPV-50, LDF4-50A, HL4RPV-50 cable.

Specifications Andrew L4TDF-PSA

Product Classification

  • Brand: HELIAX®   |   Positive Stop™
  • Product Type: Wireless and radiating connector

General Specifications

  • Interface: 7-16 DIN Female
  • Body Style: Straight
  • Brand: HELIAX®   |   Positive Stop™
  • Harmonized System (HS) Code: 854420 (Coaxial cable and other coaxial electric conductors)
  • Mounting Angle: Straight
  • Ordering Note: CommScope® standard product (Global)

Electrical Specifications

  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 8800 MHz
  • Cable Impedance: 50 ohm
  • 3rd Order IMD, typical: -120 dBm @ 910 MHz
  • 3rd Order IMD Test Method: Two +43 dBm carriers
  • RF Operating Voltage, maximum (vrms): 1415.00 V
  • dc Test Voltage: 4000 V
  • Outer Contact Resistance, maximum: 1.50 mOhm
  • Inner Contact Resistance, maximum: 0.80 mOhm
  • Insulation Resistance, minimum: 5000 MOhm
  • Average Power: 1.1 kW @ 900 MHz
  • Peak Power, maximum: 40.00 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -110 dB

Outline Drawing

Konektor Andrew L4TDF-PSA 7-16 Din Female

Konektor Andrew L4TDF-PSA 7-16 Din Female

 Mechanical Specifications

  • Outer Contact Attachment Method: Ring-flare
  • Inner Contact Attachment Method: Captivated
  • Outer Contact Plating: Trimetal
  • Inner Contact Plating: Silver
  • Attachment Durability: 25 cycles
  • Interface Durability: 50 cycles
  • Interface Durability Method: IEC 61169-4:9.5
  • Connector Retention Tensile Force: 890 N   |   200 lbf
  • Connector Retention Torque: 5.42 N-m   |   48.00 in lb
  • Insertion Force: 200.17 N   |   45.00 lbf
  • Insertion Force Method: IEC 61169-1:15.2.4

Dimensions

  • Nominal Size: 1/2 in
  • Diameter: 74.98 mm   |   2.95 in
  • Length: 28.84 mm   |   1.14 in
  • Weight: 109.17 g   |   0.24 lb

Environmental Specifications

  • Operating Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
  • Storage Temperature: -55 °C to +85 °C (-67 °F to +185 °F)
  • Immersion Depth : 1 m
  • Immersion Test Mating: Unmated
  • Immersion Test Method: IEC 60529:2001, IP68
  • Water Jetting Test Mating: Unmated
  • Water Jetting Test Method: IEC 60529:2001, IP66
  • Moisture Resistance Test Method: MIL-STD-202F, Method 106F
  • Mechanical Shock Test Method: MIL-STD-202, Method 213, Test Condition I
  • Thermal Shock Test Method: MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
  • Vibration Test Method: IEC 60068-2-6
  • Corrosion Test Method: MIL-STD-1344A, Method 1001.1, Test Condition A

Jual Konektor Andrew L4TDF-PSA 7-16 Din Female dan cari produk terbaik lainnya dari kategori Cable and Connector dari Merk Andrew Gratis biaya pengiriman untuk wilayah Jakarta-Depok dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Indotelecom.id, belanja online alat ukur dan alat survey mudah dan aman.

INDOTELECOM.id menyediakan berbagai produk dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, dan Bali.
