Konektor-Andrew-L5PDF-RPC-7-16-DIN-Female

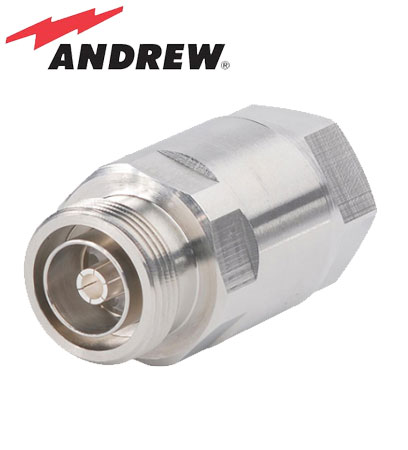

Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female

Rp 395.000

INDOTELECOM supplier Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female
* Harga sewaktu-waktu dapat berubah mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21 – 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Konektor Andrew, Kabel Andrew Heliax, Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare
Category: Tag:

Share this product

Description

Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female merupakan konektor produksi Andrew Commscope. Konektor ini banyak digunakan utk Radio Komunikasi. Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female mempunyai kualitas yang sangat baik & bagus.

Berikut Untuk Spesifikasi Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female
Connector L5PDF-RPC 7-16 DIN Female OnePiece™ for 7/8 in AVA5-50A, LDF5-50A cable

General Specifications:

  • Interface : 7/8” DIN Female
  • Body Style : Straight
  • Brand : EZfit®
  • Harmonized System ( HS) Code : 854420 ( Coaxial cable and other coaxial electric conductors)
  • Mounting Angle : Straight Electrical

Specifications:

  • Connector Impedance : 50 ohm
  • Operating Frequency Band : 0 – 5000 MHz
  • Cable Impedance : 50 ohm
  • 3rd Order IMD, typical : -116 dBm @ 1800 MHz
  • 3rd Order IMD Test Method : Two + 43 dBm carriers
  • RF Operating Voltage, maximum ( vrms) : 1415.00 V
  • dc Test Voltage : 4000 V
  • Outer Contact Resistance, maximum : 1.50 mOhm
  • Inner Contact Resistance, maximum : 0.40 mOhm
  • Insulation Resistance, minimum : 5000 MOhm
  • Peak Power, maximum : 40.00 kW
  • Insertion Loss, typical : 0.05 dB

Mechanical Specifications:

  • Outer Contact Attachment Method : Clamp
  • Inner Contact Attachment Method : Captivated
  • Outer Contact Plating : Trimetal
  • Inner Contact Plating : Silver
  • Attachment Durability : 25 cycles
  • Interface Durability : 50 cycles
  • Interface Durability Method : IEC 61169-4: 9.5
  • Connector Retention Tensile Force : 1334 N | 300 lbf
  • Connector Retention Torque : 8.13 N-m | 72.00 in lb
  • Insertion Force : 200.17 N | 45.00 lbf
  • Insertion Force Method : IEC 61169-1: 15.2.4
  • Pressurizable : No

Dimensions:

  • Nominal Size : 7/ 8 in
  • Diameter : 37.10 mm | 1.46 in
  • Length : 47.90 mm | 1.89 in
  • Weight : 136.60 g | 0.30 lb

Jual Konektor Andrew 7/8″ Inch L5PDF-RPC 7-16 Din Female dan cari produk terbaik lainnya dari kategori Cable and Connector dari Merk Andrew Gratis biaya pengiriman untuk wilayah Jakarta-Depok dan dapat dikirim ke seluruh Indonesia. Dapatkan hanya di toko online Indotelecom.id, belanja online alat ukur dan alat survey mudah dan aman.

INDOTELECOM.id menyediakan berbagai produk dari supplier dan distributor resmi yang tersebar dibeberapa kota di Indonesia seperti Jakarta, Bandung, Bekasi, Depok, Cikarang, Tangerang, Lampung, Pontianak, Jogja, Semarang, Solo, Batam, Padang, Pekanbaru, Malang, Surabaya, Medan, Makassar, Balikpapan, Samarinda, Palembang, Riau, Aceh, Manado, dan Bali.
