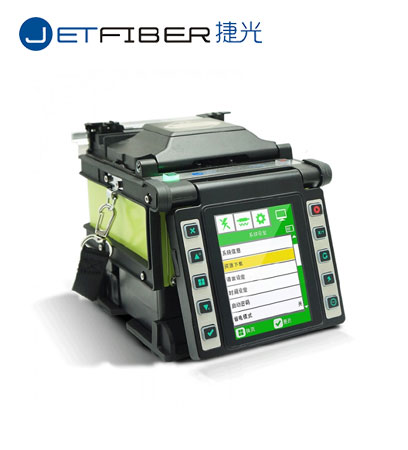

Fusion Splicer JetFiber X4

Rp 42.750.000

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi harga terbaru dan stok, silahkan hubungi Sales Support kami melalui kontak berikut:

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare

Share this product

Description

Fusion Splicer JetFiber X4 / JetFiber Splicing Machine has 2 main models :
– Fusion Splicer X6: main for backbone, FTTX , factory , LAN, all the opitcal fiber projects.
– Fusion Splicer X4: main for FTTX projects.

Product Descriptions:
Multi-language Jetfiber X4 Optical Fiber FTTH Fusion Splicer

Features Fusion Splicer JetFiber X4 :

  1. 1 secs. topspeed boot time.
  2. 6 secs. splicing time.
  3. 12 secs. Heating timie.
  4. Max. 300X fiber magnification.
  5. Smart-connected APP.
  6. Splicing record management.
  7. Intelligent burglar-resisting system.
  8. Three-dimensional protection cover.
  9. Reduce risk and unpredictability.
  10. Handy.lightweight.anti-dropping solid and durable.
  11. Hi-speed USB connection internet remote control.
  12. Splice loss: SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB,BI:0.02dB.
  13. 4 motors and flexible V-groove alignment system.
  14. 5600 mAh battery capacity over 250 times splicing and heating.
  15. 2 years warranty and lifetime maintenance.

Specifications Fusion Splicer JetFiber X4:

Size & Weight : D156×W140×H150(MM);1.9kg(2.3kg with battery)
Fiber alignment :
4 motors and flexible V-groove alignment system
Fiber type :
SM(ITU-T G.652), MM(ITU-T G.651),DS(ITU-T G.653), NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)

Splice mode: Single fiber
Fiber diameter: Cladding diameter 80~150um, coating 100~1000um
Cleave length:250um cladding diameter 8~16mm, over 250um cladding diameter 16mm
Splicing programs: Max.200
Splicing cycle time: 6 secs.[SM Fast] program, 10 secs.[SM G652] program
Heating programs: Max.30
Heating cycle time: Adjustable, 12 secs. typical
Splice protector: 13~60mm
Splice image capture: Max.100

Splice data storage: Max.3000

Splice loss: SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss: >>60dB
Loss estimation: Provided
Operation condition: Altitude 0~5000m, Humidity 0~95%, Temperature -20~+50℃, Wind velocity up to 15m/s
Storage condition: Humidity 0~95%, Temperature -40~+80℃(Battery -20~+40℃)
Tension: 1.96~2.25N
Fiber view: Two cameras observation, 4.1 inch high-light color screen
Fiber magnification: 300x for X or Y single axis view, 180x for both X&Y dual axis view
Port: High speed USB
Electrode life: 5000 arc discharges
Power supply: AC100-240V, 50/60Hz
Battery module: 5600mAh High capacity battery, more than 250 times splicing and heating

Specifications:
Size & Weight
D190×W140×H150(MM);1.6kg(2.0kg with battery)
Fiber alignment
4 motors and flexible V-groove alignment system
Fiber type
SM(ITU-T G.652), MM(ITU-T G.651),DS(ITU-T G.653), NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)
Splice mode
Single fiber
Fiber diameter
Cladding diameter 80~150um, coating 100~1000um
Cleave length
250um cladding diameter 8~16mm, over 250um cladding diameter 16mm
Splicing programs
Max.100
Splicing cycle time
6 secs.[SM Fast] program, 10 secs.[SM G652] program
Heating programs
Max.30
Heating cycle time
Adjustable, 12 secs. typical
Splice protector
10~60mm
Splice image capture
Max.30
Splice data storage
Max.3000
Splice loss
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss
>>60dB
Loss estimation
Provided
Operation condition
Altitude 0~5000m, Humidity 0~95%, Temperature -20~+50℃, Wind velocity up to 15m/s
Storage condition
Humidity 0~95%, Temperature -40~+80℃(Battery -20~+40℃)
Tension
1.96~2.25N
Fiber view
Two cameras observation, 4.1 inch high-light color screen
Fiber magnification
300x for X or Y single axis view, 180x for both X&Y dual axis view
Port
High speed USB
Electrode life
5000 arc discharges
Power supply
AC100-240V, 50/60Hz
Battery module
5600mAh High capacity battery, more than 250 times splicing and heating
