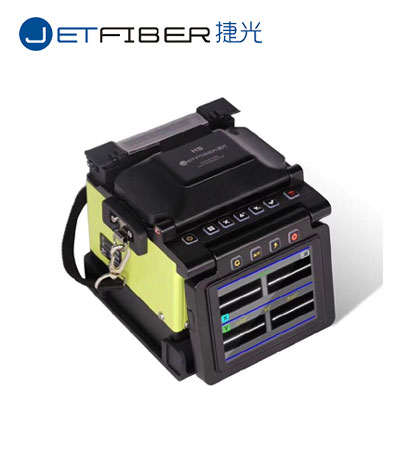

Fusion Splicer JetFiber H5

(1 customer review)

Rp 33.685.000

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi harga terbaru dan stok, silahkan hubungi Sales Support kami melalui kontak berikut:

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email : indo_telecom@yahoo.com

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Compare

Share this product

Description

Spesification FUSION SPLICER JETFIBER H5 :
Size & Weight
D136×W141×H136(mm); 1.5kg(1.8kg with battery)
Fiber alignment
Core alignment
Fiber type
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode
Single fiber
Fiber diameter
Cladding diameter 80~150um, coating 100~1000um
Cleave length
250um cladding diameter 8~16mm, over 250um cladding diameter 16mm
Splicing programs
Max.100
Splicing cycle time
5 secs.[SM Fast] program, Typical 12 secs.(Adjustable)
Heating programs
Max.30
Heating cycle time
Adjustable, 12 secs. typical
Splice protector
13~60mm
Splice image capture
Max.300
Splice data storage
Max.20000
Splice loss
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss
>>60dB
Loss estimation
Provided
Operation condition
Altitude 0~5000m, Humidity 0~95%, Temperature -20~+50℃, Wind velocity up to 15m/s
Storage condition
Humidity 0~95%, Temperature -40 ~+80℃(Battery -20~+40℃)
Tension
2N
Fiber view
Two 300x cameras observation, 4.1 inch high-light color screen
Fiber magnification
300x for X or Y single axis view,150x for both X&Y dual axis view
Port
High speed USB
Electrode life
5000 arc discharges
Power supply
AC100-240V, 50/60Hz
Battery module
4000mAh High capacity battery, more than 240 times splicing and heating
