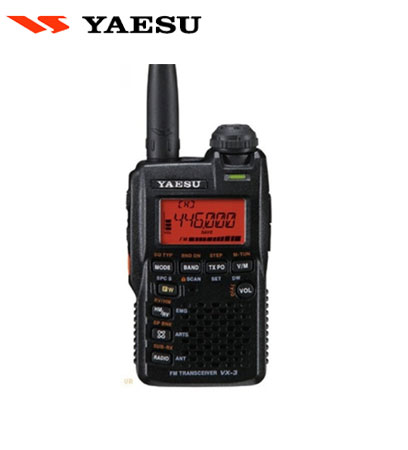

Handy Talky Yaesu VX-3R

Rp 2.800.000

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email :

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.


Share this product


INDOTELECOM Supplier Handy Talky Motorola Yaesu VX-3R dari Produk Yaesu

FEATURES Yaesu VX-3R Dual Band

Ultra-compact and Light Weight

1.9″ X 3.2″ X .9″
4.6 ounces

Rugged Construction

Tough where it counts – Aluminum Die-Cast Chassis

Plenty of Power Output in a Compact Package

1.5 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI 144 MHz)
3 W (@ 6 V or EXT DC 144 MHz)
1 W (@4.5 V AA x 3 or 3.7 V FNB-82LI 430 MHz)
2 W (@ 6 V or EXT DC 430 MHz)

Low 0.1 W (@ 4.5 V AA x 3 or 3.7 V FNB-82LI)
Low 0.3 W (@ 6 V or EXT DC)

Supplied with Tiny Super-thin, Lithium-ion High-Capacity Battery and Charger

Long life in a quality battery for extended usage

Operate with AA Batteries with Optional Battery Case

Requires Optional FBA-37 Battery Case. When traditional local power service is not available to power your battery charger, this feature insures continued operation using readily available “AA” batteries.

Internal Bar Antenna for AM Broadcast Band Reception

Improved AM Broadcast Band reception for your entertainment

Designated Earphone Jack for FM Stereo Broadcast Listening

Makes the VX-3R a useful receiver far beyond it’s Amateur Radio applications

Listen to AM or FM Broadcast while Monitoring an Amateur Frequency

Sub RX feature allows you to listen to your favorite AM or FM Stereo Broadcast station while monitoring an Amateur Radio frequency…AT THE SAME TIME!

Wide-band Receiver Coverage

Extremely wide receiver coverage – see “Specifications”

Special Memory Banks – WX, VHF Marine, Shortwave Broadcast

The VX-3R has special memory bands programmed with WX broadcast, VHF Marine, and world-wide short-wave broadcast stations

Huge 1000-channel Memory Capacity

Plenty of memory space for ALL of your favorite frequencies

New Mechanical Dial Lock Function

No more “bumps” off your desired channel – lock it and keep it.

Equipped for Worldwide Internet Linking

Talk Around the World using Yaesu WIRES II Internet Linking!

Go to the Yaesu website front page, , click on “Products”, and then click on “WIRES” for more information on this exciting communications opportunity

CW Learning and Training Feature

CW (Morse Code) licensing requirements have been removed by the FCC. However, all of those HF, VHF, and UHF Morse code designated frequencies are still there with loads of weak signal DX just waiting for you. Consider learning the Morse code – we will help you experience the excitment of working the World on CW with our VX-3R CW Learning and Training feature.


Frequency Range Receive:  0.5 – 1.8 MHz (“BC BAND”)
 1.8 –   30 MHz (“SW BAND”)
  30 – 76 MHz (“6M”)
  76 – 108 MHz (“FM”)
108 – 137 MHz (“AIR”)
137 – 174 MHz (“V-HAM”)
174 – 222 MHz (“VHF TV”)
222 – 420 MHz (“ACT 1” Action Band 1)
420 – 470 MHz (“U-HAM”)
470 – 800 MHz (“UHF-TV”)
800 – 999 MHz (“ACT 2” Cellular Blocked)
Frequency Range Transmit: 144 – 148 MHz
430 – 450 MHz
Channel Steps: 5/9/8.33/10/12.5/15/20/25/50/100 kHz
Frequency Stability: ±5 ppm (-10° C – +60 ° C)
Repeater Shift: ±600 kHz (VHF)
±1.6/5.0/7.6 MHz (UHF)
Emission Type: FD, FE
Antenna Impedance: 50 Ohms, unbalanced
Supply Voltage: Nominal: 3.7 V DC, negative ground
Operating: 3.5 – 7.0 V, negative ground (EXT DC jack)
Current Consumption: 120 mA (Receive)
60 mA (Standby, Saver Off)
30 mA (Standby, Saver On)
100 µA (Auto Power Off)
1.3 A (1.5 W TX, VHF)
Operating Temperature: -4° to 140° F (-20°C to +60°C)
Case Size: 1.9 x 3.2 x 0.9 inches (47x81x23 mm (w/o knob & antenna)
Weight: 4.6 oz (130 g.) (Approx., w/ant. & battery)
Circuit Type: Double-conversion superheterodyne (AM, NFM)
AM Radio / FM Radio
Single-conversion superheterodyne
IFs: 1st: 47.25 MHz (AM, NFM)
45.8 MHz (WFM)
130 kHz (AM Radio / FM Radio)
IFs: 2nd: 450 kHz (AM, NFM)
10.7 MHz (WFM))
IFs: 3rd: – (AM, NFM)
1 MHz (WFM))
Sensitivity: 3.0 µV for 10dB SN (0.5-30 MHz)
0.35 µV for 12dB SINAD (30-54 MHz NFM)
1 µV TYP for 12dB SINAD (54-76 MHz NFM)
1.5 µV TYP for 12dB SINAD (76-108 MHz NFM)
1.5 µV TYP for 10dB SN (108-137 MHz NFM)
0.2 µV for 12dB SINAD (137-140 MHz NFM)
0.16 µV for 12dB SINAD (140-150 MHz NFM)
0.2 µV for 12dB SINAD (150-174 MHz NFM)
1 µV for 12dB SINAD (174-222 MHz NFM)
0.5 µV for 12dB SINAD (300-350 MHz NFM)
0.2 µV for 12dB SINAD (350-400 MHz NFM)
0.18 µV for 12dB SINAD (400-470 MHz NFM)
1.5 µV for 12dB SINAD (470-540 MHz WFM)
3 µV TYP for 12dB SINAD (540-800 MHz WFM)
1.5 µV TYP for 12dB SINAD (800-999 MHz NFM)
Selectivity (-6dB/-60dB): 12 kHz/35 kHz (NFM, AM)
Selectivity (-6dB/-20dB): 200 kHz/300 kHz (WFM)
AF Output: 50 mW @ 8 Ohms for 10% THD (@ 3.7 V DC)
100 mW @ 8 Ohms for 10% THD (@ 6.0 V DC)
AF Output Impedance: 8 Ohms
RF Power Output: 1.5W (@ 3.7 V FNB-82LI 144 MHz)
3.0W (@ 6 V EXT DC Input 144 MHz)
1.0W (@ 3.7 V FNB-82LI 430 MHz)
2.0W (@ 6 V EXT DC Input 430 MHz)
Modulation Type: Variable Reactance
Maximum Deviation: ±5 kHz
Spurious Emission: At least 50 dB below carrier
Microphone Impedance: 2 k Ohm
Specifications are subject to change without notice and are guaranteed within amateur bands only.
Frequency ranges and repeater shift vary according to transceiver version.
