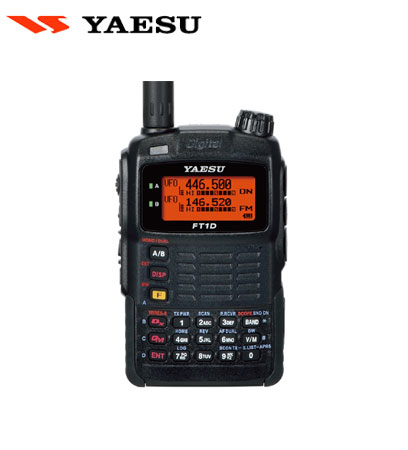

Handy Talky Yaesu FT1DR

Rp 0

*Harga dapat berubah sewaktu-waktu mengikuti Kurs Rupiah.

Untuk informasi Stok Barang & Harga Terbaru, silahkan hubungi Sales Support kami melalui kontak berikut :

Telepon : (+62) 21- 2904 8787
WhatsApp : 0812 1374 1000
Email :

INDOTELECOM : Supplier Perangkat Radio Komunikasi, Alat Telekomunikasi, Alat Survey, Alat Geologi, Binocular, GPS, Alat Teknik, Alat Ukur & Peralatan Umum, bergaransi RESMI dengan harga kompetitif di pasaran online.

Out of stock


Share this product


INDOTELECOM Supplier Handy Talky Motorola Yaesu FT1DR dari Produk Yaesu

FEATURES Dual Band Digital Yaesu FT1DR 12,5 kHz C4FM/FDMA 144/430MHz

FT1DR menyediakan 3 Digital mode dan satu Analog mode, dengan fungsi Automatic Mode Select yang secara automatis memilih Mode:

·         V/D mode adalah komunikasi Suara dan Data dalam kerangka waktu yang sama, memungkinkan transceiver untuk mengirim data suara dengan data posisi GPS dan data ID dalam jangka waktu yang sama. Mode ini juga bisa melewati data suara dengan data pengumpulan error yang kuat untuk menstabilkan komunikasi digital.

·         Data FR mode menggunakan tingkat penuh kapasitas data untuk mentransfer data. Mode ini memungkinkan Anda mentransfer sejumlah besar data, pesan teks, gambar, dan data memo suara dengan kecepatan ganda dalam mode V / D.

·         Voice FR mode menggunakan tingkat penuh kapasitas data untuk data suara. Mode ini memungkinkan Anda mentransfer data suara berkualitas tinggi yang jernih.

·         Analog FM mode sama dengan mode FM saat ini yang memungkinkan Anda berkomunikasi dengan semua operator radio VHF / UHF HAM.

Compact Size

Case: 2.4″(W) x 3.7″(H) x 1.1″(D) without knob, antenna and belt clip
Weight: 9.35 Oz with FNB-101LI battery and antenna

Rugged Case with Water Protection

The FT1DR has a very rugged case with a Water Protection IPX5 Rating making it PERFECT for extreme environments, field and outdoor use

High Power and Long Life Operation

You can depend on up to 5 watts of reliable power output. There are four steps of power output, 5 watts, 2.5 watts, 1 watt and 0.1 watt. There are two types of Li-Ion battery. The optional FNB-102LI battery will provide up to 8 hours of typical 5 watt operation.

Illuminated Kyeboard

Fully illuminated keyboard that will permit easy operation in dark environments

User-friendly Intuitive and Easy-to-Master Operations

The FT1DR is extremely user-friendly, with a wide range of functions that can be called up directly. An easy-to-understand hierarchical menu is also used for the setting modes that allows customization of the FT1DR and makes it convenient to use. Press the ENT key to move to a lower level of the hierarchy, press the DISP key to return to a higher level, and turn the dial to select items or set values. These simple operations can be used to adapt the FT1DR/FT1DE to many communication situations

Real Dual Band Operation (V V/U U/V U)

With two independent receivers, you may listen to either the same or a different band simultaneously.

AF Dual Control

Listen to AM or FM radio stations while monitoring two frequency channels! Two independent receivers will allow you to listen to your favorite AM or FM broadcast station, and monitor two different bands (“Band A” and “Band B”) at the same time.

Four (4) Communication Modes

The FT1DR operates in one traditional analog mode and three digital modes! Enjoy communication in the mode that best suits your needs. purpose.

1. V/D Mode (Simultaneous Voice/Data Communication Mode)
Half of the bandwidth is used for voice signal with error correction. The transceiver uses powerful error correction technology developed for professional communication devices. The very effective error correction code provides benefits such as minimal interruption of communication. The basic digital C4FM FDMA mode provides a good balance between sound quality and error correction.

2. Voice FR Mode (Voice Full Rate Mode)
This mode uses the entire 12.5 kHz bandwidth to transmit digital voice data. The larger voice data size allows voice communication with high sound quality. Use this mode for pleasing sound quality communication between amateur radio friends.

3. Data FR Mode (High-speed Data Communication Mode)
A high-speed data communication mode that uses the entire 12.5 kHz bandwidth for data communication. The transceiver automatically switches to this mode when sending and receiving images, allowing a large amount of data to be transmitted quickly.

4. Analog FM Mode
Analog FM is effective for communication with a weak signal that causes voices to break up in the digital modes. The analog mode allows communication even at distances where noise and weak signals make communication almost impossible. The tried-and-trusted low-power circuit design uses less battery power than the digital modes.

The Automatic Mode Selection

The Automatic Mode Select function detects the receive signal mode
The transceiver automatically selects one of the four communication modes according to the signal received. This is extremely convenient when listening for communications, as you do not need to be aware of the other party’s communication mode. The transceiver can also be operated in a fixed communication mode.

Snapshot Picture Taking Capability

When using the handy speaker microphone camera (optional MH-85A11U), press the shutter button to capture a snapshot, then press the image transmit button to easily transmit the image data.

The snapshot image or received data is stored in a high capacity micro SD card that is installed in the radio. You can recall and send that image data from the SD card anytime. The image data size is 320 x 240 dots or 160 x 120 dots. Image quality can set from 3 types, and you can choose a format that is suitable for the image and purpose.

This image data also retains a time record and the GPS location data of the snapshot. It is easy to view and edit the data file after taking the pictures by using a personal computer.

A snapshot aids in navigating and returning to the pictured location; other various uses are possible.

Digital Group Monitor Function

The digital GM function automatically checks whether members registered in a group are within communication range, and displays information such as distance and direction for each call sign on the screen. This convenient function makes it possible not only to see whether any friends are in communication range, but also to instantaneously determines the location and relationship between all members of the group.

This function can also be used to send messages and data such as images between members of a group, permitting convenient and fun communication between friends when out for a drive or hike. Sent and received messages and images can be checked on the LOG List screen, with icons making them easy to distinguish.

Band Scope

The FT1DR includes a high resolution band-scope with about 50 channels.

Wideband Receive Coverage

Covers 504 kHz – 999.900 MHz (A Band), 108 MHz – 580 MHz (B Band), continuous reception for short-wave, FM/AM broadcasts, aircraft, public service channels, etc.

Preset Receiver Function – NOAA Weather, Marine, Shortwave

Preset Receiver Function with an Extensive Range of Major Broadcasting Stations and Various Wireless Information Services. The FT1DR has a preset receiver function with various frequencies in memories, making it easy to call up stations in the various communication services. The frequencies include short-wave broadcasts, international (marine) VHF and NOAA Weather channels.

Built-in GPS

Integral GPS receiver and antenna (located on top of the radio) provides location, time, direction and APRS® information. The FT1DR has a very useful GPS data transmission capability.

1200/9600bps APRS® Data Communication

The built-in worldwide standard AX.25 Data TNC Modem permits uncomplicated APRS® (Automatic Packet Reporting System) operation. You will be able to display the information, station list; and use the message, SmartBeaconing TM function . You will be able to track your APRS® movement on the Internet websites.

Smart Navigation Function

This is a real-time navigation function that records the location and direction of Group Monitor (GM) stations. Digital V/D Mode communicates information such as position data at the same time as the voice signal, allowing you to view the distance and direction of the other party in real time while communicating. This makes it possible to confirm your position and the other party’s in situations such as hiking and driving where your positions are constantly changing, providing an easy way to meet up or join routes.

Backtrack Function to Return to Departure Point

This function allows navigation back to the departure point, or a point previously added to the memory. When hiking or camping, just register the starting point or the position of your tent and then you can constantly check the direction and distance from your current position. The arrow of the compass display constantly shows the direction to the registered point, making it extremely convenient in finding your way back to the registered place – just move in the direction so that the arrow in the heading-up display
points straight upward.

Lots of Memory Channels and Features

The FT1DR includes 1266 channel memories; 24 100-channel memory banks; memory TAG up to 16 characters.


We were sure to include versatile scanning capablities for the monitoring enthusiasts!

DTMF Features

Fuctional DTMF Encode and Memory features are included

Selective Call / Pager Features

Built-in CTCSS, DCS and an all new PAGER fution encode/decode enables multiple-use selective calling features.

Vibrate Alert

Select from three types of Vibrate Alert functions

Data Terminal for Data Communication

A Data terminal is located on the side of the radio. The optional camera equipped microphone (MH-85A11U) may be connected to this terminal. Your Personal Computer may also be connected to this terminal to transfer the data or update the firmware of the radio

Micro SD Card Slot

A micro SD card slot is provided on the side of the radio. Memory back-up, the picture image data and other useful information is stored on the high capacity micro SD card (Maximum 32GB). The GPS logger records the location and track information of your moving station, which may be shown later by using Map software on your personal computer, By using the SD card, it is also possible to clone the radio data to the other compatible radios.

Accurate 24 Hour Clock

The FT1DR GPS receiver is used to provide a highly accurate 24 hour Clock for your various needs.

Password Lock

Password Lock function to meet you security concerns.

Improved AM Broadcast Reception

An Internal Bar Antenna ensures better than normal AM broadcase band reception

Other Features

– High-intensity White LED for Emergency Illumination
– Built-in sensor provides accurate temperature readings.
– Built in On/Off Timer
– Automatic Power Off
– Time-out Timer
– Battery saving features


 Frequency covered  Type of frequency
Frequency Range A (reception) 0.5 –  1.8 MHz AM Radio
1.8 – 30.0 MHz SW Radio
30 – 76 MHz 50MHz Radio
76 – 108 MHz FM  Radio
108 – 137 MHz Air Band
137 -144 MHz 144MHZ HAM
174 – 222 MHz VHF Band
222 – 420 MHz GEN1
420 -470 MHz 430 MHz HAM
470 -800 MHz UHF Band
800 -999 MHz GEN2 Cellular Blocked US Model
B (Sub Band RX) 108- 137 MHz Air Band
137 – 174 MHz 144 MHz HAM
174 – 222 MHz VHF Band
222 – 420 MHz GEN1
420 – 470 MHz 430 MHz HAM
470 -580 MHz UHF Band
Transmitter – TX 144- 146 MHz European Version
430 – 440 MHz European Version
Channel Steps 5,6.25,8.33, 9 KHz 8.33KHz Airband only; 9KHz AM only
10,12.5,15,20 KHz
25,50, 100 KHz
Frequency Stability ±2.5ppm -20°C to +6°C (-4°F to +60°F)
Emission Type  F1D,F2D,F3E,F7W F7W – C4FM
Supply Voltage  Nominal 7.4VDC -VE GND ( Negative Ground
Operating Voltage range 4V  – 14V -VE GND with EXT DC JACK
11V – 16V -VE GND with EXT DC JACK with E-DC-5B
Current Consumption          Receiver: 150mA Mono Band Receive
220mA Dual Band Receive
100mA Mono Band Receive – Standby Mode
150mA Dual Band Receive – Standby Mode
45mA Mono Band RX, STBY, Saver Ratio 1:5
45mA Dual Band RX, STBY, Saver Ratio 1:5
+30mA GPS ON
+65mA Digital Mode on
600μA Auto Power Off mode
Transmitter: 1.7A 5W TX 144MHz 7.4V DC
2.0A 5W TX 430MHZ 7.4V DC
Operating  Temperature -20°C to +6°C -4°F to +60°F
Case Size 60(W) x 95(H) x 28(D) mm  2.4″ x 3.7″ x 1.1″  w/o knob, Ant or belt clip
Weight 265g (9.35oz) excluding FNB-101Li and Antennae
RF Powwer Output 5W @7.4VDX or EXT DC
Modulation Type F1D, F2D, F3E Variable  Reactance Modulation
F7W 4 Level FSK C4FM
Spurious Emission At least 60dB below @TX Power level Hi, L3, L2
At least 50dB below @TX Power level L1
Circuit Type  AM, NBFM Double Conversion Superhet
AM Airband/FM Broadcast Singel Conversion Superhet
Intermediate Frequencies 1st IF 47.25MHz AM, NBFM A Band
1st IF 46.35MHz AM, NBFM B Band
2nd IF 450 KHz AM, NBFM
1sr IF 130 KHz AM/FM Radio
Sensitivity 3μV for 10dB SN 0.5 – 30 MHz @AM
0.3μV TYP for 12dB SINAD 30 – 54 MHz @NFM
1μV TYP for 12dB SINAD 54 – 76 MHz @NFM
1.5μV TYP for 12dB SINAD 76 – 108 MHz @NFM
1.5μV TYP for 10dB SN 108 – 137 MHz @ AM
0.2μV for 12dB SINAD 137 – 140 MHz @NFM
0.16μV for 12dB SINAD 140 -150 mhZ @NFM
0.2μV for 12dB SINAD 150 -174 MHz @NFM
1μV for 12dB SINAD 174 – 222 MHz @NFM
0.5μV for 12dB SINAD 300 -350 MHz @NFM
0.2μV for 12dB SINAD 350 -400 MHz @NFM
0.16μV for 12dB SINAD 400 -470 MHz @NFM
1.5μV for 12dB SINAD 470 -540 MHz @NFM
3μV for 12dB SINAD 800 – 999MHz @NFM Cellular Blocked USA
0.19μV TYP for BER1% Digital Modes
Selectivity NFM, AM 12 KHz / 35 KHz ( -6dB / -60dB)
AF Output 200mW 8Ω for 10% THD @ 7.4VDC
400mW 4Ω for 10% THD @ 7.4VDC
